Progress Card

A card widget displaying progress with title, description, and progress bar.

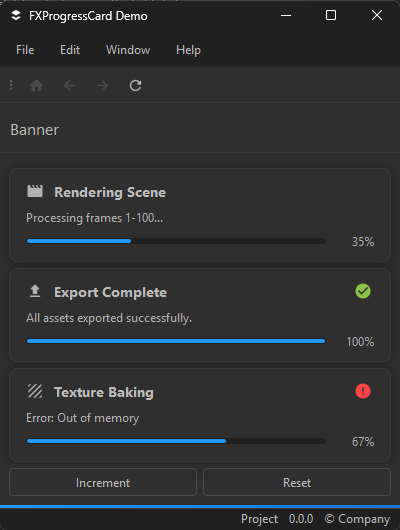

Preview

FXProgressCard

FXProgressCard

Bases: FXThemeAware, QFrame

A card widget showing task/step progress.

This widget provides a styled card with: - Title and description - Progress bar or circular progress - Status icon - Perfect for pipeline tools and task tracking

Parameters:

Name Type Description Default

parent

Optional[QWidget]

Parent widget.

 None

title

str

Card title.

 'Task'

description

Optional[str]

Optional description text.

 None

progress

int

Initial progress value (0-100).

 0

status

Optional[int]

Status icon type (SUCCESS, ERROR, WARNING, INFO, etc.).

 None

show_percentage

bool

Whether to show percentage text.

 True

icon

Optional[str]

Optional icon name to display next to the title.

 None
Signals

progress_changed: Emitted when progress changes. completed: Emitted when progress reaches 100%.

Examples:

>>> card = FXProgressCard(
...     title="Rendering",
...     description="Frame 50/100",
...     progress=50
... )
>>> card.set_progress(75)

Methods:

Name Description
increment

Increment the progress by a given amount.
reset

Reset progress to 0.
set_description

Set the card description.
set_progress

Set the progress value.
set_status

Set the status icon.
set_title

Set the card title.

Attributes:

Name Type Description
progress int

Return the current progress value.

progress property writable

progress: int

Return the current progress value.

increment

increment(amount: int = 1) -> None

Increment the progress by a given amount.

Parameters:

Name Type Description Default

amount

int

Amount to increment (default 1).

 1

reset

reset() -> None

Reset progress to 0.

set_description

set_description(description: str) -> None

Set the card description.

Parameters:

Name Type Description Default

description

str

The new description.

 required

set_progress

set_progress(value: int) -> None

Set the progress value.

Parameters:

Name Type Description Default

value

int

Progress value (0-100).

 required

set_status

set_status(status: Optional[int]) -> None

Set the status icon.

Parameters:

Name Type Description Default

status

Optional[int]

Status constant (SUCCESS, ERROR, WARNING, etc.) or None.

 required

set_title

set_title(title: str) -> None

Set the card title.

Parameters:

Name Type Description Default

title

str

The new title.

 required
